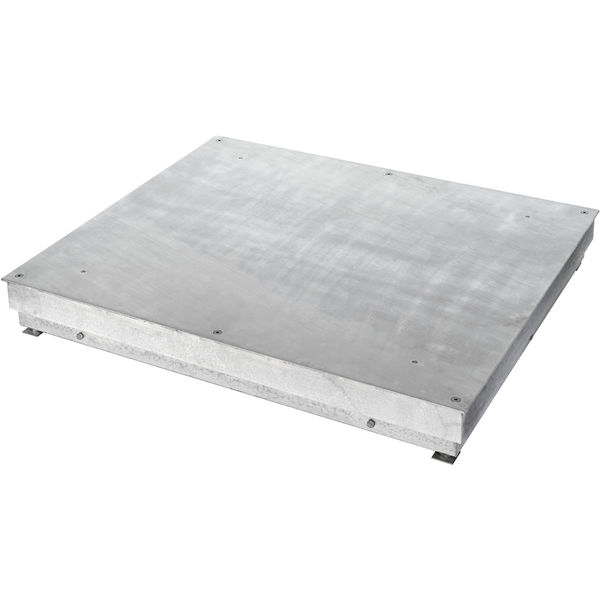

Model PFK989-E3000
Unprecedented Accuracy.High Precision Floor Scale
High Precision Weighing
The outstanding metrology is a result of the load cell with integrated Monobloc technology and of a high precision mechanical design.
Reliable In Harsh Conditions
The robust design of the platform body ensures reliable measurements at the highest precision.
Fast Weighing Processes
Industry-leading stabilization time and up to 92 updates per second make the platform suitable for high-speed weighing processes.
المواصفات - Model PFK989-E3000
| Maximum Capacity | 3,000 kg (3,000 lb) |
| Readability | 5 g (0.01 lb) |
| Readability (Certified) | 200 g |
| Repeatability(sd) | 10 g (0.022 lb) |
| Platform Size (Length) | 1,500 mm (59 in) |
| Platform Size (Width) | 1,250 mm (49 in) |
| Platform Size (Height) | 182 mm (7.2 in) |
| Material | Stainless Steel V2A (AISI 304) |
| Protection Rating | IP66; IP68 |
| Dimensions (Width) | 49 in |
| Hazardous Approval | Optional; IECEX Gb/Db or Gc/Dc; ATEX Cat. 2GD or Cat. 3GD; FM Class I, II, III/Div 1 or Div 2; other local approvals |
| Scale Interface | SICSpro |
| Repeatability | 10 g |
| Repeatability | 0.005 lb |
| Repeatability (typical) | 10 g |
| Repeatability (typical) | 0.02205 lb |
| Readability (Certified) Standard | 100 g; 200 g; 500 g |
| Floor Scale Type | High-Precision Floor Scales; All Floor Scales |
| Legal for Trade | NTEP; OIML |
| Environment | Wet & Harsh Wet (>/=IP66) |
| Hazardous Area | Non-hazardous area; Zone 1/21; Zone 2/22; Division 2; Division 1 |
| Dimensions/Platform Size | from 41" to 59.9"; from 1,001 to 1,500 mm |
| Performance Optimization | For Best Performance: High resolution monobloc load cell; Easy Scale Leveling: For fast & precise leveling; FACT: Fully automated calibration |
| Compliance Support | Hygienic Designed: Easy to Clean; GMP certified: Documented compliance for regulated environments |
| Versatility | For High Precision Weighing: The correct result at any time; Plug & Play Functionality: Ready to weigh straight from the box; Rugged and Durable: Built to last; Digital Platform: For demanding tasks in wet environment |
| Platform Type | Floor Platform |
| Legal for Trade Class OIML | Class II |
| Legal for Trade Class NTEP | Class II |
| Zero Return (typical) | 12 g (0.0264 lb) |
| Error of Indication at half load (typical) | 40 g (0.088 lb) |
| Hysteresis (typical) | 7 g (0.0154 lb) |
| Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric) | 105 g |
| Eccentric Load Deviation at 1/3 of Full Load (typical) | 0.231 lb |
| Error of Indication at full load (typical) | 50 g (0.11 lb) |
| EasyPrint Name | PFK989-E3000 |
| Hygenic Design | Yes |
| رقم/أرقام المواد | 22201197 |
* with SICSpro adapter
