Model PFK989-D600 - Overview - METTLER TOLEDO

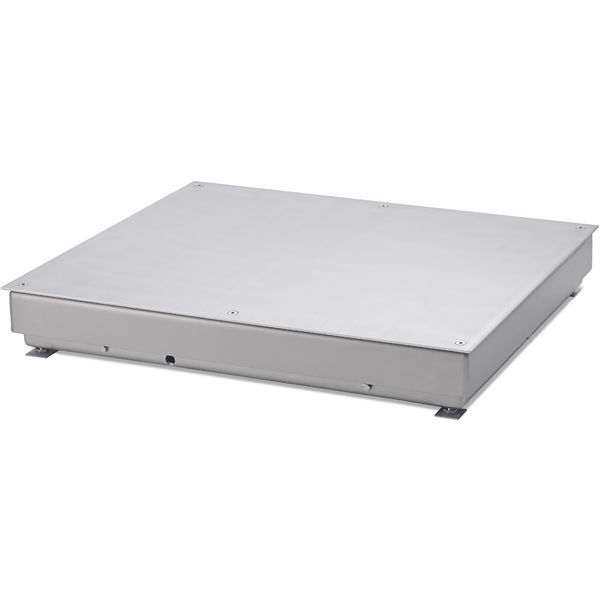

Model PFK989-D600

Unprecedented Accuracy.High Precision Floor Scale

High Precision Weighing

The outstanding metrology is a result of the load cell with integrated Monobloc technology and of a high precision mechanical design.

Reliable In Harsh Conditions

The robust design of the platform body ensures reliable measurements at the highest precision.

Fast Weighing Processes

Industry-leading stabilization time and up to 92 updates per second make the platform suitable for high-speed weighing processes.

Model PFK989-D600
Model PFK989-D600



If regular and severe cleaning are vital, the models with raisable load plate are the perfect choice.



المواصفات - Model PFK989-D600
Maximum Capacity
600 kg (1,200 lb)
Readability
1 g (0.002 lb)
Readability (Certified)
50 g
Repeatability(sd)
2.5 g (0.0055 lb)
Platform Size (LxHxW)
1,250 mm x 180 mm x 1,000 mm (49 in x 7.1 in x 39 in)
Material
Stainless Steel V2A (AISI 304)
Protection Rating
IP66; IP68
Hazardous Approval
Optional; IECEX Gb/Db or Gc/Dc; ATEX Cat. 2GD or Cat. 3GD; FM Class I, II, III/Div 1 or Div 2; other local approvals
Scale Interface
SICSpro
Repeatability
0.002 lb
Repeatability, typical
2 g
Repeatability (typical)
0.00441 lb
Readability (Certified) Standard
20 g; 50 g; 100 g
Floor Scale Type
High-Precision Floor Scales; All Floor Scales
Hazardous Area
Non-hazardous area; Zone 1/21; Zone 2/22; Division 2; Division 1
Legal for Trade
NTEP; OIML
Environment
Wet & Harsh Wet (>/=IP66)
Dimensions/Platform Size
from 41" to 59.9"; from 1,001 to 1,500 mm
Performance Optimization
For Best Performance: High resolution monobloc load cell; Easy Scale Leveling: For fast & precise leveling; FACT: Fully automated calibration
Compliance Support
Hygienic Designed: Easy to Clean; GMP certified: Documented compliance for regulated environments
Versatility
For High Precision Weighing: The correct result at any time; Plug & Play Functionality: Ready to weigh straight from the box; Rugged and Durable: Built to last; Digital Platform: For demanding tasks in wet environment
Platform Type
Floor Platform
Legal for Trade Class OIML
Class II
Legal for Trade Class NTEP
Class II
Zero Return (typical)
2 g (0.0044 lb)
Error of Indication at half load (typical)
8 g (0.0176 lb)
Hysteresis (typical)
2 g (0.0044 lb)
Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric)
21 g
Eccentric Load Deviation at 1/3 of Full Load (typical)
0.0462 lb
Error of Indication at full load (typical)
10 g (0.022 lb)
EasyPrint Name
PFK989-D600
Hygienic Design
Yes
رقم/أرقام المواد
22201194

* with SICSpro adapter
