Model PFK989-C300 - Overview - METTLER TOLEDO

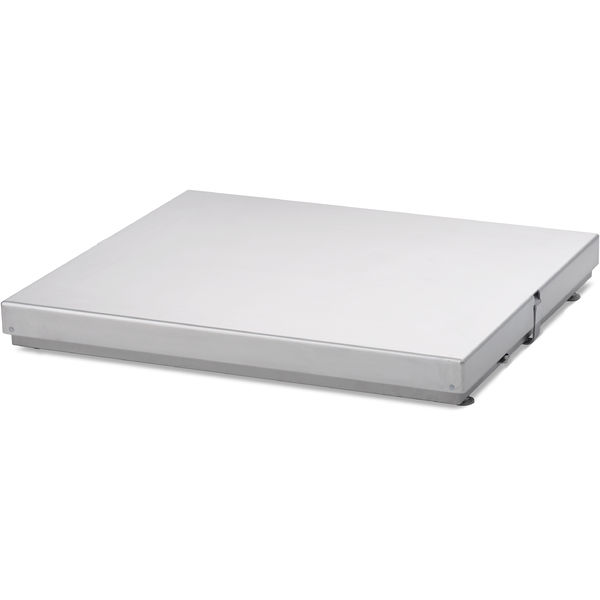

Model PFK989-C300

Unprecedented Accuracy.High Precision Floor Scale

High Precision Weighing

The outstanding metrology is a result of the load cell with integrated Monobloc technology and of a high precision mechanical design.

Reliable In Harsh Conditions

The robust design of the platform body ensures reliable measurements at the highest precision.

Fast Weighing Processes

Industry-leading stabilization time and up to 92 updates per second make the platform suitable for high-speed weighing processes.

pfk989-c300-small
المواصفات - Model PFK989-C300
Maximum Capacity
300 kg (600 lb)
Readability
0.5 g (0.001 lb)
Readability (Certified)
20 g
Repeatability(sd)
0.6 g (0.00132 lb)
Platform Size (Length)
1,000 mm (39 in)
Platform Size (Width)
800 mm (32 in)
Platform Size (Height)
115 mm (4.5 in)
Material
Stainless Steel V2A (AISI 304)
Protection Rating
IP66; IP68
Hazardous Approval
Optional; IECEX Gb/Db or Gc/Dc; ATEX Cat. 2GD or Cat. 3GD; FM Class I, II, III/Div 1 or Div 2; other local approvals
Scale Interface
SICSpro
Repeatability
0.6 g
Repeatability
0.001 lb
Repeatability (typical)
0.6 g
Repeatability (typical)
0.00132 lb
Readability (Certified) Standard
10 g; 20 g; 50 g
Floor Scale Type
High-Precision Floor Scales; All Floor Scales
Legal for Trade
NTEP; OIML
Environment
Wet & Harsh Wet (>/=IP66)
Hazardous Area
Non-hazardous area; Zone 1/21; Zone 2/22; Division 2; Division 1
Dimensions/Platform Size
</=1000 mm; </=40"
Performance Optimization
For Best Performance: High resolution monobloc load cell; Easy Scale Leveling: For fast & precise leveling; FACT: Fully automated calibration
Compliance Support
Hygienic Designed: Easy to Clean; GMP certified: Documented compliance for regulated environments
Versatility
For High Precision Weighing: The correct result at any time; Plug & Play Functionality: Ready to weigh straight from the box; Rugged and Durable: Built to last; Digital Platform: For demanding tasks in wet environment
Platform Type
Floor Platform
Legal for Trade Class OIML
Class II
Legal for Trade Class NTEP
Class II
Zero Return (typical)
0.6 g (0.00132 lb)
Error of Indication at half load (typical)
2.5 g (0.0055 lb)
Hysteresis (typical)
0.6 g (0.00132 lb)
Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric)
10.5 g
Eccentric Load Deviation at 1/3 of Full Load (typical)
0.0231 lb
Error of Indication at full load (typical)
3 g (0.0066 lb)
EasyPrint Name
PFK989-C300
Hygenic Design
Yes
رقم/أرقام المواد
22201192
