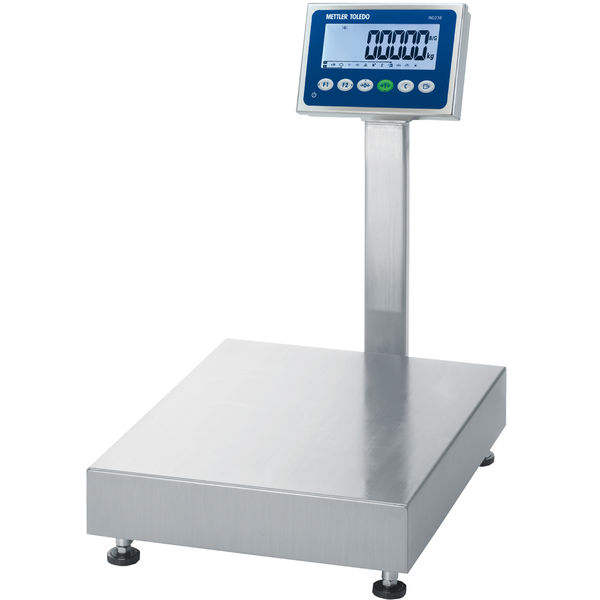

Bench Scale BBA236-4BB30N
For Demanding Applications.
Simple & Intuitive
The IP65-rated scale is easy to operate. The straightforward setup of different functions requires minimal operator training.
Easy to Clean
The open and sturdy stainless-steel platform design, built according to hygienic standards, allows fast, thorough and easy cleaning.
The scale is AC powered and unapproved by delivery. The stand is not included with scale and must be ordered separately.
| Maximum Capacity||30 kg|
| Readability||2 g|
| Repeatability (sd)||1.4 g|
| Platform Size (WxWxH)||15.7 in (300 mm) x 400 mm x 97 mm|
| Material||Stainless Steel|
| Protection Rating||IP67 terminal; IP65 Platform|
| Display||7 segment LCD with backlit|
| Housing||Stainless Steel|
| Repeatability||2 g|
| Application Software||Counting; Dynamic Weighing; Over Under Checkweighing; Simple weighing|
| Hazardous Approval||No|
| Repeatability (typical)||1.4 g|
| Weighing Pan Dimensions (HxLxW)||57 mm x 300 mm x 400 mm|
| Applications||Counting; Dynamic weighing; Over Under Checkweighing; Simple Weighing|
| Data Interface||Serial|
| Dimensions/Platform Size||</=400 mm|
| Environment||Dusty & Light Wet (IP65)|
| Scale Interface||Analog|
| Voltage||AC Version|
| Hygenic Design||No|
| Cable||2.3 m|
| Platform Type||Bench Scale|
| Material Number(s)||30080334|
