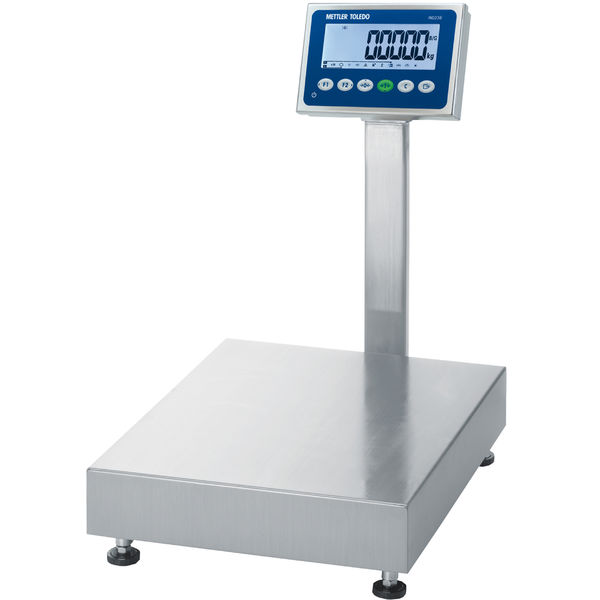

Bench Scale BBA236-4A15N

For Demanding Applications.

Simple & Intuitive

The IP65-rated scale is easy to operate. The straightforward setup of different functions requires minimal operator training.

Easy to Clean

The open and sturdy stainless-steel platform design, built according to hygienic standards, allows fast, thorough and easy cleaning.

Execution

The scale is AC powered and unapproved by delivery. The stand is not included with scale and must be ordered separately.

Specifications - Bench Scale BBA236-4A15N
Maximum Capacity 15 kg
Readability 1 g
Repeatability (sd) 0.5 g
Platform Size (WxWxH) 11.8 in (240 mm) x 300 mm x 86 mm
Material Stainless Steel
Protection Rating IP67 terminal; IP65 Platform
Display 7 segment LCD with backlit
Interfaces RS232
Housing Stainless Steel
Repeatability 1 g
Application Software Counting; ; ; Simple weighing
Hazardous Approval No
Repeatability (typical) 0.5 g
Weighing Pan Dimensions (HxLxW) 56 mm x 240 mm x 300 mm
Applications Counting; Dynamic weighing; Over Under Checkweighing; Simple Weighing
Data Interface Serial
Dimensions/Platform Size </=400 mm
Environment Dusty & Light Wet (IP65)
Scale Interface Analog
Voltage AC Version
Hygenic Design No
Cable 1.8 m
Platform Type Bench Scale
Material Number(s) 30080332
