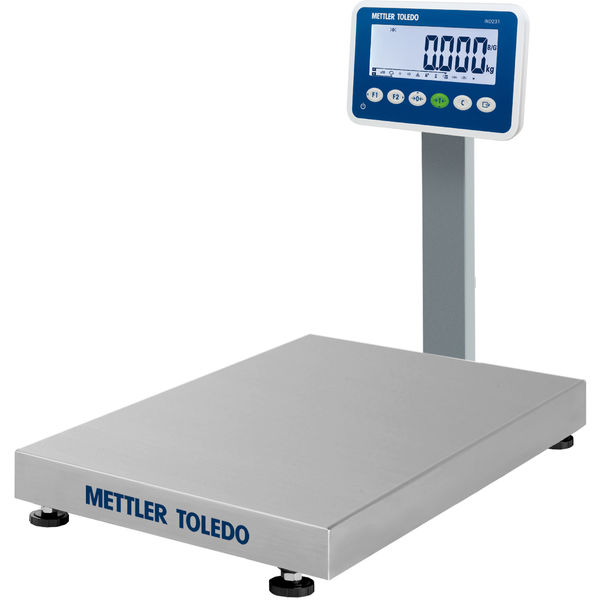

Bench Scale BBA231-3B60A
For Routine Applications.BBA231 - Bench Scale
Multi-Functional
Fast, economical and multi-functional for any straight weighing, counting, checkweighing or classifying application in a dry environment.
Visible and Fast
The terminal, with its large LCD display, is easy to operate and features a built-in RS232 interface to communicate with a printer or PC.
Lasting Battery Power
The scale is powered by 240 VAC or 6 AA dry batteries for >80 hours of stand-alone operation.
Call for Quote /content/in/en/home/products/Industrial_Weighing_Solutions/bench-scales/ind-basics/BBA231/BBA231-3B60A.fb.1.c.11.html?abcl=2 Specifications - Bench Scale BBA231-3B60A
| Maximum Capacity | 60 kg |
| Readability | 5 g |
| Repeatability (sd) | 2.7 g |
| Platform Size (Length) | 400 mm (15.7 in) |
| Platform Size (Width) | 500 mm (19.7 in) |
| Platform Size (Height) | 79 mm (3.11 in) |
| Material | Platform: Carbon Steel; Terminal: Plastic |
| Protection Rating | IP54 Terminal; IP65 Platform |
| Display | 7 segment LCD with backlit |
| Interfaces | RS232 |
| Housing | Platform: Carbon Steel; Terminal: Plastic |
| Repeatability | 5 g |
| Repeatability (typical) | 2.7 g |
| Repeatability (typical) | 0.006 lb |
| Weighing Pan Dimensions (Length) | 400 mm (15.7 in) |
| Hazardous Approval | No |
| Application Software | Dynamic Weighing; Counting; Simple weighing; Over Under Checkweighing |
| Weighing Pan Dimensions (Width) | 500 mm (19.7 in) |
| Weighing Pan Dimensions (Height) | 49 mm (1.93 in) |
| Data Interface | Serial |
| Applications | Simple Weighing; Dynamic weighing; Counting; Over Under Checkweighing |
| Environment | Dry (<IP65) |
| Dimensions/Platform Size | from 15.8" to 19.7"; from 401 to 500 mm |
| Hazardous Area | Non-hazardous area |
| Voltage | Battery Version; AC Version |
| Scale Interface | Analog |
| Hygenic Design | No |
| Performance Optimization | Reliable Weighing Technology: Robust aluminum strain gauge load cell |
| Data Management | Printing: Application specific print templates |
| Versatility | Good Readability: LCD-Display with backlit; Mobile Operation: Battery optional available; Bench Scale: For versatile weighing tasks in dry environment |
| New Attribute (2) | 2 m (6.5 ft) |
| Platform Type | Bench Scale |
| Zero Return (typical) | 1.5 g |
| Error of Indication at half load (typical) | 3.2 g |
| Hysteresis (typical) | 2.4 g |
| Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric) | 4.4 g |
| Error of Indication at full load (typical) | 4.8 g |
| EasyPrint Name | BBA231-3B60A |
| Material Number(s) | 30080312 |
