Bench Scale ICS469g-BB30 - Overview - METTLER TOLEDO

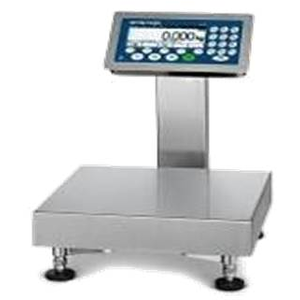

Bench Scale ICS469g-BB30

Speed up Production.

Optimize your production processes

An optimal combination between terminal and weighing platform (t-, f- or c-version) leads to less production failure and speeds up your productivity.

Resist wet and harsh 24/7

All parts have been built according to the latest hygienic design guidelines supporting an easy, fast and efficient cleaning procedure.

Easy to operate

All you need for Over/Under checkweighing. Use the numeric keypad for changing of pre-tare values. The colorWeight function® improves your throughput.

Specifications - Bench Scale ICS469g-BB30
Maximum Capacity 50 lb (30 kg)
Readability 0.005 lb (2 g)
Repeatability (sd) 0.0016 lb (0.7 g)
Platform Size (LxWxH) 11.8 in x 15.7 in x 4.25 in (300 mm x 400 mm x 108 mm)
Material Stainless Steel V2A (AISI 304)
Protection Rating IP65; IP67; IP68; IP69k
Display Graphic LCD with multicolor backlit
Interfaces RS232
Readability (Certified) 0.01 lb (10 g)
Housing Stainless Steel V2A (AISI 304)
Repeatability 0.005 lb (2 g)
Application Software Counting; ; ; Simple weighing
Hazardous Approval No
Repeatability (typical) 0.0016 lb
Repeatability (typical) 0.7 g
Applications Counting; Dynamic weighing; Over Under Checkweighing; Simple Weighing
Data Interface Ethernet; Serial; USB; WLAN
Dimensions/Platform Size </=400 mm; from 6.3" to 15.7"
Environment Wet & Harsh Wet (</=IP66)
Legal for Trade NTEP; OIML
Interfaces (Optional) Discrete I/O; Ethernet; RS422; RS485; USB; WLAN
Scale Interface Analog
Voltage AC Version; Battery Version
Hygenic Design Yes
Maximum Capacity 25 kg
Platform Type Bench Scale
Readability (Certified) 5 g
Material Number(s) 22021047
