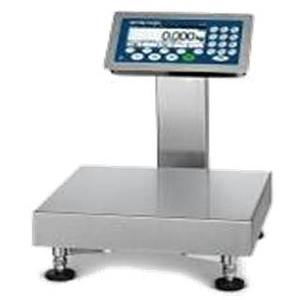

Bench Scale ICS469g-A15
Speed up Production.
Optimize your production processes
An optimal combination between terminal and weighing platform (t-, f- or c-version) leads to less production failure and speeds up your productivity.
Resist wet and harsh 24/7
All parts have been built according to the latest hygienic design guidelines supporting an easy, fast and efficient cleaning procedure.
Easy to operate
All you need for Over/Under checkweighing. Use the numeric keypad for changing of pre-tare values. The colorWeight function® improves your throughput.
|Maximum Capacity Maximum Capacity:25 lb (15 kg)||25 lb (15 kg)|
|Readability Readability:0.002 lb (1 g)||0.002 lb (1 g)|
|Repeatability (sd) Repeatability (sd):0.0009 lb (0.4 g)||0.0009 lb (0.4 g)|
|Platform Size (LxWxH) Platform Size (LxWxH):9.5 in x 11.8 in x 3.81 in (240 mm x 300 mm x 97 mm)||9.5 in x 11.8 in x 3.81 in (240 mm x 300 mm x 97 mm)|
|Material Material:Stainless Steel V2A (AISI 304)||Stainless Steel V2A (AISI 304)|
|Protection Rating Protection Rating:IP66Protection Rating:IP68Protection Rating:IP69k||IP66; IP68; IP69k|
|Display Display:Graphic LCD with multicolor backlit||Graphic LCD with multicolor backlit|
|Readability (Certified) Readability (Certified):0.005 lb (5 g)||0.005 lb (5 g)|
|Housing Housing:Stainless Steel V2A (AISI 304)||Stainless Steel V2A (AISI 304)|
|Repeatability Repeatability:0.002 lb (1 g)||0.002 lb (1 g)|
|Hazardous Approval Hazardous Approval:No||No|
|Interfaces (Optional) Interfaces (Optional):Discrete I/OInterfaces (Optional):EthernetInterfaces (Optional):RS422Interfaces (Optional):RS485Interfaces (Optional):USBInterfaces (Optional):WLAN||Discrete I/O; Ethernet; RS422; RS485; USB; WLAN|
|Voltage Voltage:AC VersionVoltage:Battery Version||AC Version; Battery Version|
|Hygenic Design Hygenic Design:Yes||Yes|
|Maximum Capacity Maximum Capacity:10 kg||10 kg|
|Platform Type Platform Type:Bench Scale||Bench Scale|
|Readability (Certified) Readability (Certified):2 g||2 g|
|Material Number(s) Material Number(s):22021046||22021046|
Type of construction
The terminals can individually be mounted in three different ways to the platform:
Terminal and platform are connected by cable. Suitable for wall mount or desk operation.
Terminal is fix mounted in front of the platform.
Terminal and column are seamlessly welded together. Cables are laid inside of the column.
Following load cells can be chosen:
Standard: aluminum load cell (identical to PBA226 with hygienic kit)
Optional: stainless steel load cell potted (identical to PBA426 with hygienic kit)
Optional: stainless steel load cell hermetically sealed (identical to PBA429 with hygienic kit)
