Bench Scale ICS449g-QA6 - Overview - METTLER TOLEDO

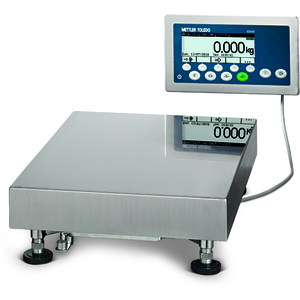

Bench Scale ICS449g-QA6

Speed up Production.

Optimize your production processes

An optimal combination between terminal and weighing platform (t-, f- or c-version) leads to less production failure and speeds up your productivity.

Resist wet and harsh 24/7

All parts have been built according to the latest hygienic design guidelines supporting an easy, fast and efficient cleaning procedure.

Easy to operate

All you need for Over/Under checkweighing. The colorWeight function® improves your throughput in manual operations.

Specifications - Bench Scale ICS449g-QA6
Maximum Capacity 10 lb (6 kg)
Readability 0.001 lb (0.5 g)
Repeatability (sd) 0.00044 lb (0.2 g)
Platform Size (LxWxH) 9 in x 9 in x 3.81 in (229 mm x 229 mm x 97 mm)
Material Stainless Steel V2A (AISI 304)
Protection Rating IP66; IP68; IP69k
Display Graphic LCD with multicolor backlit
Interfaces RS232
Readability (Certified) 0.002 lb (2 g)
Housing Stainless Steel V2A (AISI 304)
Repeatability 0.001 lb (0.5 g)
Hazardous Approval No
Interfaces (Optional) Discrete I/O; Ethernet; RS422; RS485; USB; WLAN
Voltage AC Version; Battery Version
Hygenic Design Yes
Maximum Capacity 5 kg
Platform Type Bench Scale
Readability (Certified) 1 g
Material Number(s) 22021040


Product brochure

Get Your Quote
Bench Scale ICS449g-QA6


Get Your Quote
Bench Scale ICS449g-QA6

Type of construction

The terminals can individually be mounted in three different ways to the platform:




Terminal and platform are connected by cable. Suitable for wall mount or desk operation.

Terminal is fix mounted in front of the platform.

Terminal and column are seamlessly welded together. Cables are laid inside of the column.

Following load cells can be chosen:
Standard: aluminum load cell (identical to PBA226 with hygienic kit)
Optional: stainless steel load cell potted (identical to PBA426 with hygienic kit)
Optional: stainless steel load cell hermetically sealed (identical to PBA429 with hygienic kit)
