Bench Scale BBA236-4B30N - Overview - METTLER TOLEDO

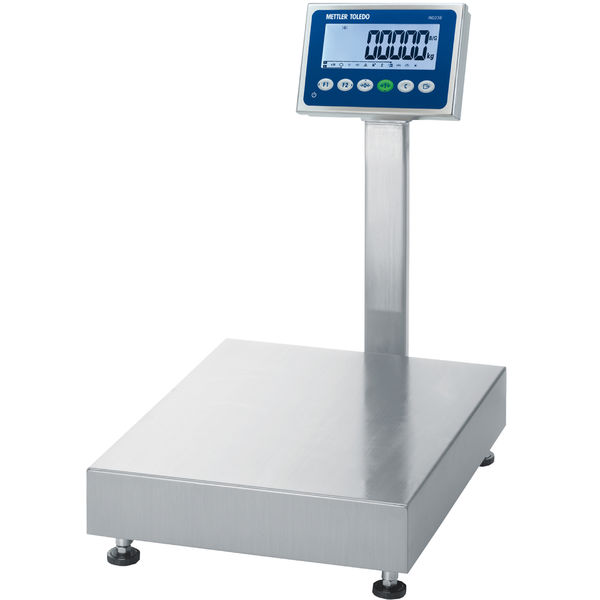

Bench Scale BBA236-4B30N

For Demanding Applications.

Simple & Intuitive

The IP65-rated scale is easy to operate. The straightforward setup of different functions requires minimal operator training.

Easy to Clean

The open and sturdy stainless-steel platform design, built according to hygienic standards, allows fast, thorough and easy cleaning.

Execution

The scale is AC powered and unapproved by delivery. The stand is not included with scale and must be ordered separately.

Call for Quote
Specifications - Bench Scale BBA236-4B30N
Maximum Capacity
30 kg
Readability
2 g
Repeatability (sd)
1.4 g
Platform Size
400 mm x 123 mm x 500 mm (19.7 in)
Material
Stainless Steel
Protection Rating
IP65 Platform; IP67 terminal
Display
7 segment LCD with backlit
Interfaces
RS232
Housing
Stainless Steel
Repeatability
2 g
Repeatability, typical
1.4 g
Weighing Pan Dimensions (LxHxW)
400 mm x 82 mm x 500 mm
Bench Scale Type {mt.com}
Basic Level
Hazardous Approval
No
Application Software
Dynamic Weighing; Counting; Simple weighing; Over Under Checkweighing
Data Interface
Serial
Hazardous Area
Non-hazardous area
Applications
Simple Weighing; Dynamic weighing; Counting; Over Under Checkweighing
Environment
Dusty & Light Wet (IP65)
Voltage
AC Version
Scale Interface
Analog
Hygienic Design
No
Performance Optimization
High Resolution: Special aluminum strain gauge load cell
Data Management
Printing: Application specific print templates
Compliance Support
Hygienic Designed Platform: Easy to Clean
Cable (Length)
2.3 m
Versatility
Good Readability: LCD-Display with backlit; Mobile Operation: Battery optional available; Bench Scale: For versatile weighing tasks in light wet environment
Platform Type
Bench Scale
Zero Return (typical)
1 g
Error of Indication at half load (typical)
1.5 g
Hysteresis (typical)
1 g
Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric)
4.8 g
Error of Indication at full load (typical)
1.7 g
EasyPrint Name
BBA236-4B30N
Material Number(s)
30080338
