Precision Balances PL6001E/A04 - Discontinued Product
Discontinued since: Feb, 2024
Portable balance for basic needs: 6200 g capacity, 0.1 g readability, bright backlit LCD, external adjustment, battery operation, stackable covers
Tough and Lightweight Design
Tough lightweight design offers fully portability and ensures accurate results on even smallest workbenches
Backlit LCD display
Designed to minimize footprint, the PL-E balance also supports battery operation, ideal when working in limited space and without a power supply.
Backlit LCD Display
Simply stack and pack up to 5 balances for quick, easy storage – effectively protected against dust and dirt.
Material No.: 30241484
Features

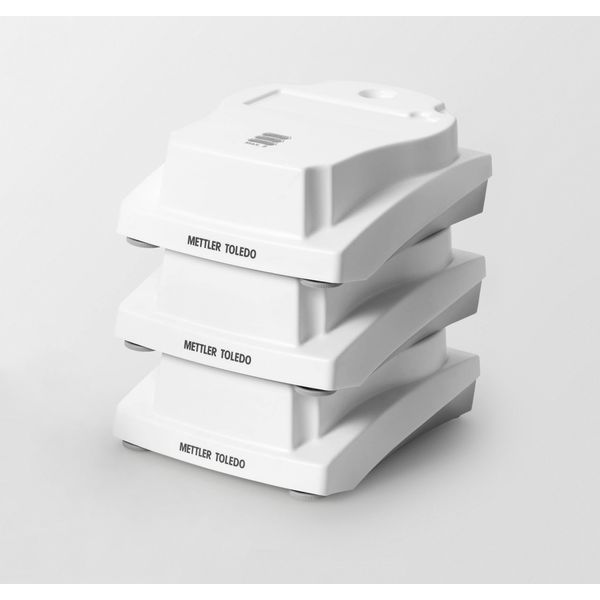

Stackable Cover
Simply stack and pack up to 5 balances for quick, easy storage – effectively protected against dust and dirt.

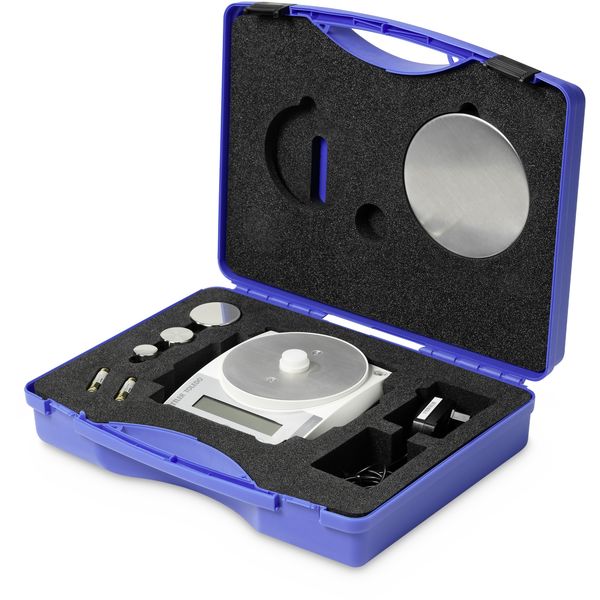

Safe and easy transportation
The handy transport case is perfect for field experiments or when you need to weigh on the go: accommodates balance, AC adapter, batteries and weights.
Specifications
Specifications - Precision Balances PL6001E/A04
| Maximum Capacity | 6,200 g |
| Readability | 0.1 g |
| Repeatability, typical | 0.07 g |
| Minimum Weight (U=1%, k=2), typical | 14 g |
| Settling Time | 1.5 s |
| Battery Option | Yes |
| Adjustment | External |
| Interfaces | RS232 (integrated/optional) |
| Display | LCD Backlit Display |
| Minimum Weight (USP, 0.1%, typical) | 140 g |
| Legal for Trade | Yes |
| Linearity, typical | 0.15 g |
| Linearity, limit | 0.2 g |
| Repeatability, limit | 0.1 g |
| Temperature accuracy (±) | 10 ppm/°C |
| Weighing Pan Diameter | 160 mm |
| Dimensions (HxWxD) | 67 mm x 194 mm x 225 mm |
| Approved Balance | Yes |
| Balance Line | PL-E |
| Balance Type | Precision Balance |
| Features | Battery option |
| Battery operation | Yes |
| Housing | ABS/PC |
| Level | Standard $ |
| Power | AC Power supply and battery operation |
Documentation
Accessories

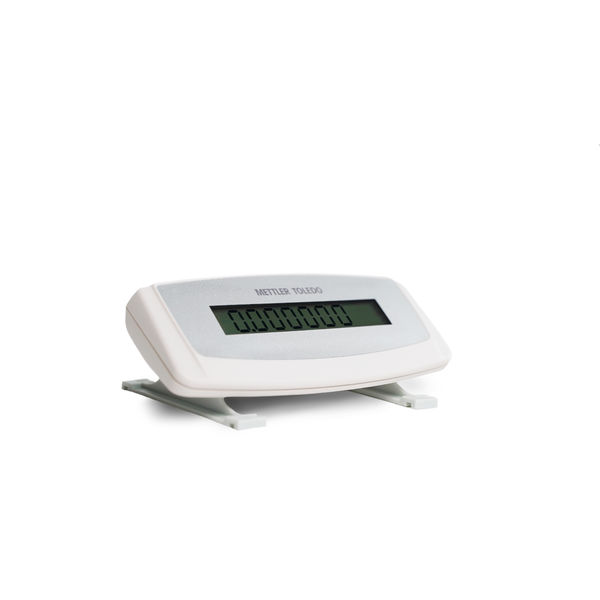

This auxiliary display for PL-E balances has a backlit LCD screen and is powered directly from the balance via the RS232 interface.
Material No.: 72213564
CarePac 5000g F2 / 200g F2 Cal
CarePac® Large 5000g F2 / 200g F2 inlcuding accessories for handling and cleaning and a calibration certificate
Material No.: 11123011
CPL,5000G, 200G,ASTM,4,4,C
CarePac® large 5000g /200g ASTM 4 class, including accessories for handling and cleaning and a calibration certificate
Material No.: 11123111
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, auto settings detection
Material No.: 30702967
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, built-in real-time clock, zero/tare key
Material No.: 11124313
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, date and time function, zero/tare key, statistics and totaling application
Material No.: 11124314
