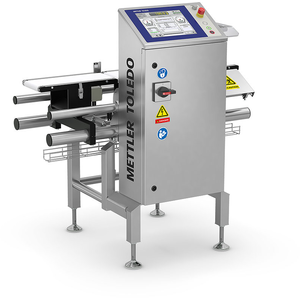

C33 PlusLine Checkweigher

C33 PlusLine

Robust Performance. A throughput of up to 300 packs per minute, a weighing range from 7 g to 7.5 kg and very high weighing accuracy positions the C33 PlusLine at the forefront of checkweighing technology.

Product Handling Flexibility

Highly customizable with 200 performance and productivity enhancing options. Wide selection of product handling variants to ensure smooth product flow

Performance in Challenging Environments

Designed for endurance and maximum reliability in wet, dry and harsh environments. Specialized conveyors designed to match production conditions.

Data Collection to Support Compliance

More than ten data communication protocols to provide the fullest suite of data collection tools. Supports Industry 4.0 integration projects.

C33 PlusLine


C33 PlusLine

A throughput of up to 300 packs per minute, a weighing range from 7 g to 7.5 kg and very high weighing accuracy positions the C33 PlusLine check...

A throughput of up to 300 packs per minute, a weighing range from 7 g to 7.5 kg and very high weighing accuracy positions the C33 PlusLine checkweigher at the very forefront of checkweighing technology. The robust performance of the C33 PlusLine checkweigher allows its use in nearly all industrial production situations requiring 100 percent weight control, especially those where demanding application requirements need to be achieved. Specialized conveyors and handling options allow for the optimal transport of unstable or open products such as jars, trays and cans. C33 PlusLine checkweighing System are operated from a 12" multilingual touchscreen positioned in front of the weigher for maxumum operator safety.



Specifications - C33 PlusLine Checkweigher
Accuracy from ± 0.05 g (50 mg)
Throughput max. 300 weighings/minute
Weighing Range 7 g - 7 500 g
Material Number(s) 24003300

Click the image below to view the diagram.

Advanced Metal Detector Integration

Available as a combination system with a large range of advanced Safeline Profile metal detectors to ensure that smaller footprints are achieved.

Weighing Terminal (HMI)

Systems are operated from a 12" multilingual touchscreen positioned in front of the conveyer for ease of use and maximum operator safety.

Weighing Technology

Electromagnetic force restoration (EMFR) load cell, digital, maintenance-free, with temperature compensation, Swiss made.

Up to 33% Higher Performance

Implies high throughput with accuracy to promote tighter manufacturing tolerances in production. Improved processes mean an increase in overall equipment effectiveness to maximise your profits.

Global Service Support

An extensive global service network fully supports cross-border contracts and ensures timely support, availability, and quick delivery of spare parts. This reduces downtime and keeps production running smoothly.
