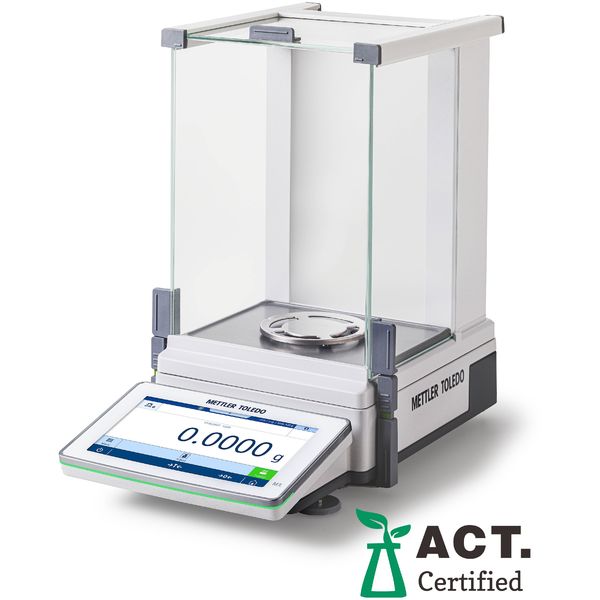

Analytical Balance MS104TS/M00 - Discontinued Product
Discontinued since: Feb, 2024
Advanced Level Analytical Balance: 120 g capacity, 0.1 mg readability, Legal for trade, 7'' touchscreen, full metal body, high-performance weighing cell, FACT, 11 applications, advanced connectivity and data management, easy to clean
Material No.: 30133553
Replaced with: Analytical Balance MX104/M
Smart Features for Advanced Requirements
Smart Features for Advanced Requirements.Addressing your needs for accuracy, compliance, and user-friendliness. 120 g capacity; 0.1 mg readability; SmartPan; user management; advanced reporting; network integration; ErgoDoors; advanced routine testing; power-saving mode; Legal for Trade
Fast and Accurate Weighing Results
With the SmartPan's unique design, the balance stabilizes quickly, even in turbulent environments, enabling faster and more efficient weighing.
GxP-Compliant Documentation
Comply with GxP guidelines with automatic data logging and user management. Transfer data to printer or PC for complete and error-free documentation.
Innovative Engineering
Clever design features provide an ergonomic weighing experience, while innovative quality assurance functions ensure accurate results.
Specifications
Specifications - Analytical Balance MS104TS/M00
| Maximum Capacity | 120 g |
| Readability | 0.1 mg |
| Repeatability, typical | 0.08 mg |
| Minimum Weight (U=1%, k=2), typical | 16 mg |
| Settling Time | 2 s |
| Adjustment | Internal (automatic/FACT) |
| Interfaces | Bluetooth (optional) Ethernet (LAN) RS232 (integrated/optional) USB-A (to device) USB-B (to device) Wireless Lan (WLAN) (optional) |
| User Management | Password protection User Rights |
| Temperature accuracy (±) | 1.5 ppm/°C |
| Display | 7" colour TFT touchscreen |
| Minimum Weight (USP, 0.1%, typical) | 160 mg |
| Legal for Trade | Yes |
| Weighing Pan Diameter | 90 mm |
| Dimensions (HxWxD) | 348 mm x 204 mm x 347 mm |
| Readability (Certified) | 1 mg |
| Compliance Options | Log history (Basic Metadata) Password protection |
| Approved Balance | Yes |
| Balance Line | MS |
| Balance Type | Analytical Balance |
| Linearity, typical | 0.06 mg |
| Mettler's Top Pick | Yes |
| Features | Leveling guidance Password protection User management |
| Recommended for | Chemical Food & Beverage Pharma |
| Linearity ± | 0.2 mg |
| Documentation Options | Basic Electronic Documentation Printing |
| Applications | Back-weighing Check weighing Counting Density Differential weighing Dynamic weighing Factor weighing Formulation Percent weighing Totaling Weighing |
| Housing | Die-cast aluminum |
| Price | $$ |
| Family | Advanced |
| Level | Advanced $$ |
| Power | AC Power supply |
| Hygienic Design | Yes |
