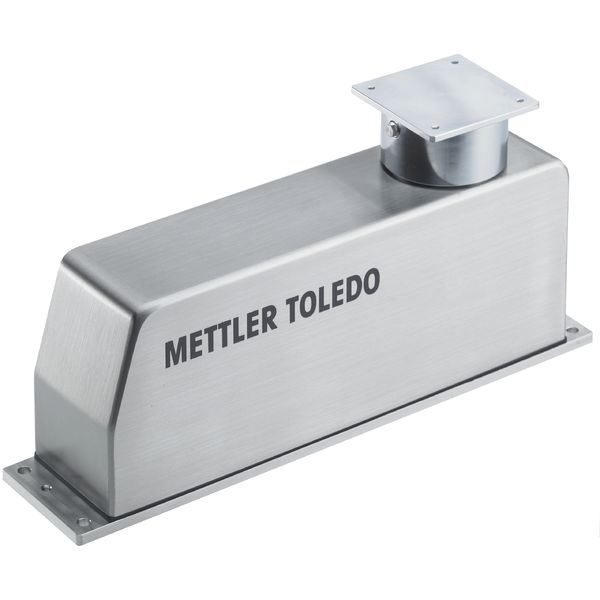

Weigh Module WMS1203C-LX/01
High-Precision Weigh Module for Ex Zone 2.WMS1203C-LX/01
High precision
The WMS weigh modules guarantee high precision for any environment thanks to individual selection of filter characteristics and stability criteria
Rugged Design
The extremely robust stainless steel design and the built-in overload protection guarantee high reliability, long lifetime and easy handling.
Fast
Designed to meet the most demanding customer specifications.The WMS is a high speed high accuracy weigh module with a split-second stabilization time.
Spécifications - Weigh Module WMS1203C-LX/01
| Maximum Capacity | 1 220 g |
| Linearity ± | 3 mg |
| Dimensions (LxWxH) | 268 mm x 59 mm x 126 mm |
| Protection Rating | IP44 |
| Hazardous Approval | ATEX: II 3G Ex nA ic IIC T6 |
| Readability | 0,001 g |
| Repeatability | 1 mg |
| Repeatability (typical) | 0,8 mg |
| Référence | 30047077 |
