SingleHead TLD950 - Overview - METTLER TOLEDO

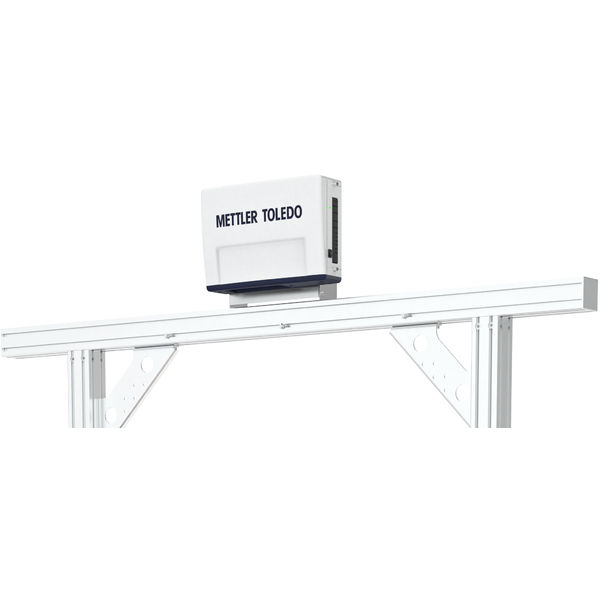

SingleHead TLD950

Recover More Revenue, Reduce Rejects.The TLD950 SingleHead dimensioner measures parcels in high-speed sorting environments. Providing the best read rates in its class, the TLD950 maximizes revenue recovery and reduces sorting errors caused by no-reads.

The Industry Leader in Read Rates

Accurately measure the widest range of dark, shiny and reflective parcels at the highest read rates. Where some dimensioners struggle, the TLD950 excels.

Simple System Setup

A powerful, internal processor eliminates the need for an external PC. Data drop is fast and seamless, while fewer parts reduce the risk of failure.

Designed for Uptime

Design quality and service features work together to ensure uptime. Low maintenance configurations and replacement are quick and easy.

Material No.: 26556032

Call for Quote
Specifications - SingleHead TLD950
Dimensional Accuracy (LxWxH)
MID: ± 5 x 5 x 2 mm; NTEP: ± 0.2 x 0.2 x 0.1 in
Max. LFT Size (LxWxH)
MID: 4000 x 900 x 900 mm, 4000 x 1200 x 700 mm; NTEP: 146 x 48 x 36 in
Min. LFT Size (LxWxH)
MID: 50 x 50 x 20 mm; NTEP: 2.4 x 2.4 x 1.2 in
Object Shape
Cuboidal objects
Object Surface
All surfaces
Speed
3.3 m/s; 655 ft/min
Conveyor Types
Standard flat conveyor
Spacing
25 mm; 1 in
Laser
Class II (2)
Working Environment
-10 to 40°C; 14 to 104°F
Power Supply
24 VDC, 100 VAC to 240 VAC
Product Dimensions
120 x 410 x 260 mm; 5 x 16 x 10 in
Protection Class
IEC 60825, electrical safety
Product Weight
9 kg; 20 lbs
Material Number(s)
26556032

Secure Connectivity

InfoSec compliance ensures data integrity, network safety and system protection.

Designed for the Future

Real-time point cloud technology streams thousands of 3D data points per second, providing the most accurate dimensions and object characteristics to create advanced applications for sophisticated hub and warehouse management.
