Bench Scale BBA231-3B60A/M - Overview - METTLER TOLEDO

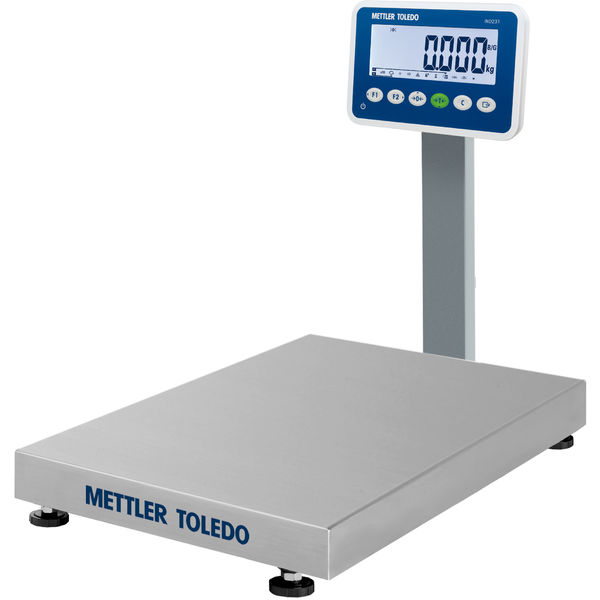

Bench Scale BBA231-3B60A/M

For Routine Applications. BBA231 - Bench Scale

Multi-Functional

Fast, economical and multi-functional for any straight weighing, counting, checkweighing or classifying application in a dry environment.

Visible and Fast

The terminal, with its large LCD display, is easy to operate and features a built-in RS232 interface to communicate with a printer or PC.

Lasting Battery Power

The scale is powered by 240 VAC or 6 AA dry batteries for >80 hours of stand-alone operation.

Specifications - Bench Scale BBA231-3B60A/M
Maximum Capacity 60 kg
Readability (Certified) 20 g
Repeatability (sd) 2.7 g
Platform Size (LxWxH) 15.7 in x 19.7 in x 3.11 in (400 mm x 500 mm x 79 mm)
Material Terminal: Plastic; Platform: Carbon Steel
Protection Rating IP54 Terminal; IP65 Platform
Display 7 segment LCD with backlit
Interfaces RS232
Housing Terminal: Plastic; Platform: Carbon Steel
Repeatability 5 g
Application Software Counting; ; ; Simple weighing
Hazardous Approval No
Repeatability (typical) 0.006 lb
Repeatability (typical) 2.7 g
Weighing Pan Dimensions (HxLxW) 1.93 in x 15.7 in x 19.7 in (49 mm x 400 mm x 500 mm)
Applications Counting; Dynamic weighing; Over Under Checkweighing; Simple Weighing
Data Interface Serial
Dimensions/Platform Size from 15.8" to 19.7"; from 401 to 500 mm
Environment Dry (<IP65)
Legal for Trade OIML
Scale Interface Analog
Voltage AC Version; Battery Version
Hygenic Design No
Cable 6.5 ft (2 m)
Platform Type Bench Scale
Material Number(s) 30080313
