Weighing Terminal IND226x - Overview - METTLER TOLEDO

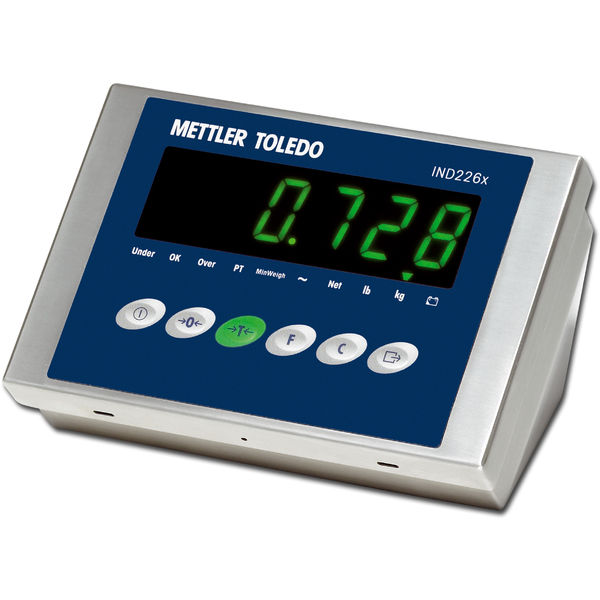

Weighing Terminal IND226x

Simple Weighing Terminal. EX-Weighing Terminal

Compact, tough and cost-effective

Complies with international hazardous-area (Cat.2, Div.1) and metrological (3000e) standards. Designed for harsh environments. Perfect cost-value ratio.

Functionalities

Minweigh, CalFREE, Over/Under and mobile weighing are important facts for the industry especially for pharmacy and chemistry industries.

Remote Display

The IND226x is appropriated to use in the hazardous area as remote indicator. Connectable with indicators in the hazardous or safe area.

Specifications - Weighing Terminal IND226x
Scale Analog; max. 1 scale
Hazardous Approval ATEX Cat. 2GD; FM Division 1; IEC Ex
Communication Intrinsically Safe Current Loop
Voltage AC Version
Display 7 segment LCD with backlit
Mounting Flexibility Column; Desk; Wall
Dimensions (LxWxHxD) 8.6 in x 6 in x 5.2 in x 5.2 in (220 mm x 150 mm x 132 mm x 132 mm)
Housing Stainless Steel
Protection Rating IP66
Custom programmable No
Hygenic Design No
Material Number(s) 22026720


Documentation

Installation Instructions

Approval ACM200

Get Your Quote
Weighing Terminal IND226x

Accessories

IND226x Weighing Terminal

Intrinsically Safe Power Supplies
Get Your Quote
Weighing Terminal IND226x

Consumables
