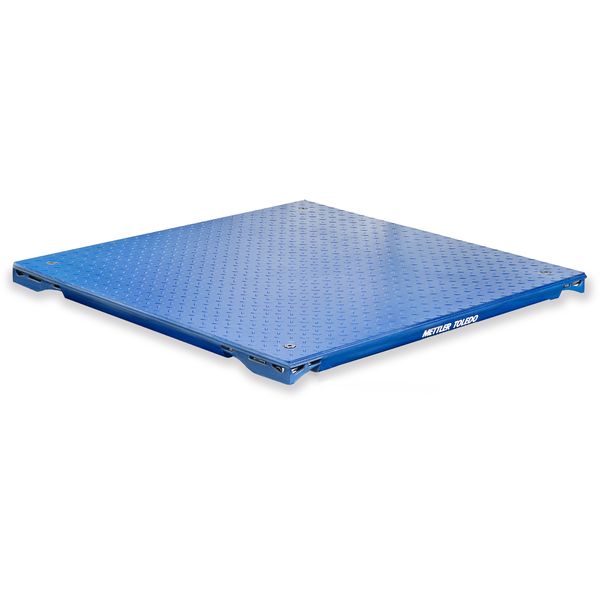

Floor Scale PFD774 US11
True Performance, Every Time!.PowerDeck™ PFD774 Mild Steel floor scale with weighing range between 300kg and 12 tons. Available sizes from 0.8x0.8m to 2x2.5m. It is the only floor scale with up to 10000e LFT accuracy on the market.
Real-Time Operator Guidance
Increase productivity by alerting operators for optimal placement of goods on the scale to guarantee repeatability. Easy, error-free operation.
Rugged and Precise
Increase yields in harsh environments. Select resolutions from 3000e up to 60,000d. The smart system monitors and compensates to ensure accuracy.
Visibility through Diagnostics
Proactively correct issues before a critical error. Track shock and overloads. Protect your investment with real-time alerts and corrective action.
Material No.: 3040512211
Features
Half the Maintenance
Use your scale twice as long between routine maintenance and calibration checks. The robust design stands up to the toughest environments, saving you time.
Specifications
Specifications - Floor Scale PFD774 US11
| Maximum Capacity | 1,000 lb (600 kg) |
| Readability | 0.05 lb (20 g) |
| Readability (Certified) | 0.1 lb (100 g) |
| Repeatability | 0.1 lb |
| Platform Size (LxH) | 39.4 in x 3 in (1,000 mm x 78 mm x 1,000 mm) |
| Material | Mild Steel |
| Protection Rating | IP68 IP69k |
| Hazardous Approval | ATEX Cat. 3GD FM Class I,II,III/Div 2 IECEx other local approvals |
| Scale Interface | POWERCELL® |
| Repeatability, typical | 8 g |
| Repeatability, (typical) | 0.1 lb |
| Repeatability (sd) | 0.1 lb (8 g) |
| Floor Scale Type | All Floor Scales Digital Floor Scales |
| Hazardous Area | Division 2 Non-hazardous area Zone 2/22 |
| Legal for Trade | NTEP OIML |
| Environment | Wet & Harsh Wet (≥IP66) |
| Dimensions/Platform Size | from 1,001 to 1,500 mm from 41" to 59.9" |
| Platform Type | Floor scale |
| Hygienic Design | No |
