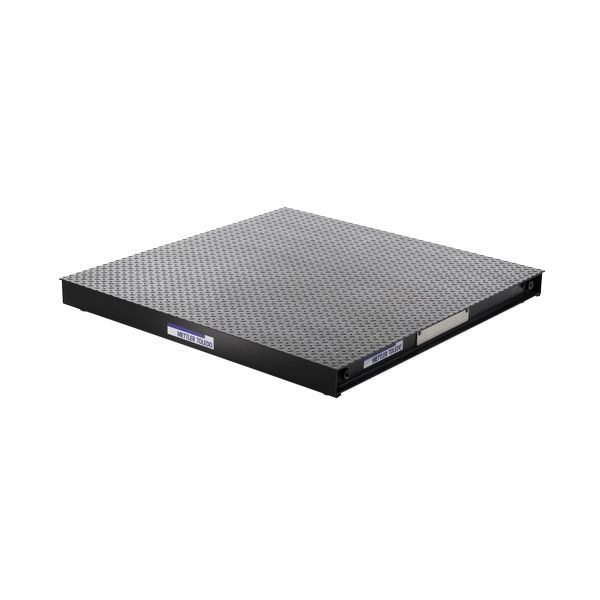

Floor Scale PFA261 S MT 5K 48X48

Material No.: 30114503

Highlights

General Weighing

The PFA261 floor scale features a rugged construction. It is suitable for facilities that handle shipping and receiving or general manufacturing.

Safety Tread Plate

The weighing platform is made of carbon steel tread plate with an epoxy painted finish. This non-slip surface provides safe footing for workers.

Pre-calibrated Option

The PFA261 floor scale can be supplied with a scale terminal that is pre-calibrated at the factory. This lets you use the scale right out of the box.

Specifications

Specifications - Floor Scale PFA261 S MT 5K 48X48

Maximum Capacity
5,000 lb (3,000 kg)
Readability
1 lb (1,000 g)
Readability (Certified)
1 lb
Repeatability
1 lb
Platform Size (LxHxW)
48 in x 4.5 in x 48 in (1,219 mm x 1,219 mm)
Material
Mild Steel (epoxy painted, tread plate deck finish)
Protection Rating
IP64
Dimensions (LxHxW)
48 in x 4.5 in x 48 in (1,219 mm x 114 mm x 1,219 mm)
Cable
25 ft
Hazardous Approval
No
Scale Interface
Analog
Repeatability, typical
1 kg
Repeatability, (typical)
1 lb
Repeatability (sd)
1 lb (1 kg)
Floor Scale Type
All Floor Scales
Basic Floor Scales
Hazardous Area
Non-hazardous area
Legal for Trade
NTEP
Environment
Dry (<IP65)
Dimensions/Platform Size
from 1,001 to 1,500 mm
from 41" to 59.9"
Platform Type
Floor scale
Hygienic Design
No
Accessories
Free-standing columns
Ramps

Documentation

Accessories

Consumables

Software
