CSN950 MultiHead

Maximum Revenue, Minimum Rejects. The CSN950 MultiHead measures parcels of any shape in high speed sorting environments. Delivering the best read rates in its class, the CSN950 MultiHead maximizes revenue recovery and reduces sorting errors caused by no-reads.

Industry leader read rates

Accurately measures the widest range of items for highest read rate. Where some dimensioners struggle, the CSN950 excels.

Simple system set-up

A powerful, internal processor eliminates the need for an external PC. Data drop is fast and seamless, while fewer parts reduce the risk of failure.

Designed for uptime

Design quality and service features work together to ensure uptime. Low maintenance is necessary and replacement is quick and easy.

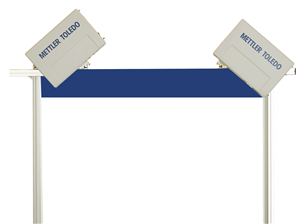

CSN950™ MultiHead Dimensioner

Especificações - CSN950 MultiHead
Accuracy (L x W x H) 0.2 x 0.2 x 0.1" (5 x 5 x 2 mm)
Maximum Object Size (L x W x H) NTEP: <655 ft/min 142 x 63 x 43"; MC: <394 ft/min 144 x 63 x 47''''; MC: <655 ft/min 79 x 36 x 36'''' (Belt width up to 900 mm (over 35 inches): 2000 x 920 x 1200 cm (787 x 362 x 472 inches); Belt width 900 - 600 mm (35 - 23.5 inches): 4000 x 1600 x 1200 cm (1,574 x 630 x 472 inches))
Minimum Object Size (L x W x H) 2.4 x 2.4 x 1.2'''' (5 x 5 x 2 cm)
Object shape All shapes identifiable -different profiles for different applications
Maximum Belt Speed 650 ft/min (3.3 m/s (650ft/min))
Object Spacing Singulated
Working Environment 14°F to 104°F (-10°C to 40°C)
Power Supply 24 VDC
Protection Rating IP54
Speed Belt width up to 35 in: 655 ft/min; Belt width 35 - 63 in: 394 ft/min (Belt width up to 900 mm: 3.3 m/s; Belt width 900 - 1600 mm: 2.0 m/s)
N&#250;mero (s) do material 556003
Nome Comercial EDS,Cargoscanner,Flexflow

*The specifications for CSN950 MultiHead may vary.
