Dropping Point System DP70
Reliable and Efficient.The DP70 offers simultaneous dropping and softening point determination of two samples up to a maximum temperature of 752°F/400°C.
Simple One Click™ Operation
The One Click™ user interface enables users to start measurements with a single click of the button.
Color video recording
With the high resolution on-screen video, measurements can be observed in real time or conveniently replayed to verify the results.
Trusted performance
With the visual camera observation and digital image analysis, highly accurate dropping/softening point temperatures are obtained fully automatically.
Material No.: 30578107
Features
Comprehensive and intuitive operation
The large color display and touch screen with the intuitive One Click™ user interface minimizes training and operator influence. Quick familiarization is guaranteed with the common user interface for all Analytical Laboratory instruments.
Efficient analyses
Simultaneous measurement of two samples saves valuable time and effort. Short heating and cooling times allow more analyses to be performed in a shorter period of time.
Fast and accurate sample preparation
The accessory box contains all required tools for correct and quick sample preparation and handling. Disposable cups and glassware eliminate the need for tedious cleanup.
Conformity with relevant standards
Full support to comply with the relevant international and national norms and standards, such as ASTM International and Ph. Eur. is ensured.
Complete results documentation
All results are securely archived and can be tracked at any time. Analysis data can be printed out, saved as a pdf file, or directly transferred to a PC.
User Management
Instrument settings can be personalized with shortcuts and the selected operator language. The user management system allows different levels of access to be defined, protecting critical data.
Specifications
Specifications - Dropping Point System DP70
| Application Type | Dropping Point Softening Point |
| Standards 1 | AOCS Cc 18-80 ASTM D3104 ASTM D3461 ASTM D3954 ASTM D6090 DIN 51920 IP396 ISO 4625-2 Ph. EUR 2.2.17 |
| Number of Cups | 2 |
| Temp. Range | RT – 400°C |
| Number of One Clicks™ | 12 Per User |
| Max. number of methods | 60 |
| Video | color, 120 minutes |
| Data Export | to SD Card, USB Stick or PC |
| Heating Rate (/min) | 0.1 °C – 20 °C |
| PDF Reports | Yes |
| Stored Results | 100 |
| Substances in database | 100 |
| User Management | Multiple Users Password protection Protection of Settings |
| Languages | English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean |
| Display / User interface | 7" color display with touchscreen |
| Dimensions (Width x Height x Depth) | 19 x 35 x 23 cm |
| Weight | 4 kg |
| Standard compliance | www.mt.com/mpdp-norms |
| Unmatched measurement principle Visual camera observation and digital image analysis guarantee that the determinations are reliable.The high resolution color videos recorded during the measurement can be repeatedly played back on the instrument. This allows you to check unexpected results by visually reviewing measurements. |  |
| Reliable results Simultaneous analysis of two samples delivers the mean value and the difference of the single results. Measurements can include conformity checks and automatic printout of results in one simple step, which prevents transcription errors and operator bias that occur with manual methods. |  |
| Conformity with current standards Operation according to standards of the American Society for Testing and Materials (ASTM International), European Pharmacopeia and further standards makes it easier to compare measurement results. You can use all the cups specified in these standards with the innovative sample carrier. |  |
| Complete result documentation All results are securely archived and can be tracked at any time. Whether you print out results on a strip or network printer, save reports as PDF, or directly transfer all result files including video to a PC, you always get the maximum information possible from your measurements. In addition the result file in CSV format (comma separated values) enables the read-out of selected data by LIMS-software. |  |
Documentation
Product Brochures
With the innovative METTLER TOLEDO dropping point systems, you can determine dropping and softening points of pitch, asphalt, polymers, resins, waxes...
Datasheets
Optimized for testing a variety of samples, the DP70 offers One Click™ dropping and softening points.
Accessories
Corded barcode reader for the reading of 1D / linear codes
Material No.: 21901297
Dot matrix printer, USB interface, print speed 2.3 lines per second, auto settings detection
Material No.: 30702998
Consumables
Calibration Substances
High-purity reference substances, traceable to LGC standards, enable accurate temperature calibration and adjustment for Melting Point and Dropping Point Excellence instruments in the range of 40 - 360 °C.
Material No.: 51143095
Dropping and Softening Point Accessories and Consumables
Calibration Substance Benzophenone
High-purity reference substances, traceable to LGC standards, enable accurate temperature calibration and adjustment for Melting Point and Dropping Point Excellence instruments in the range of 40 - 360 °C.
Material No.: 18870

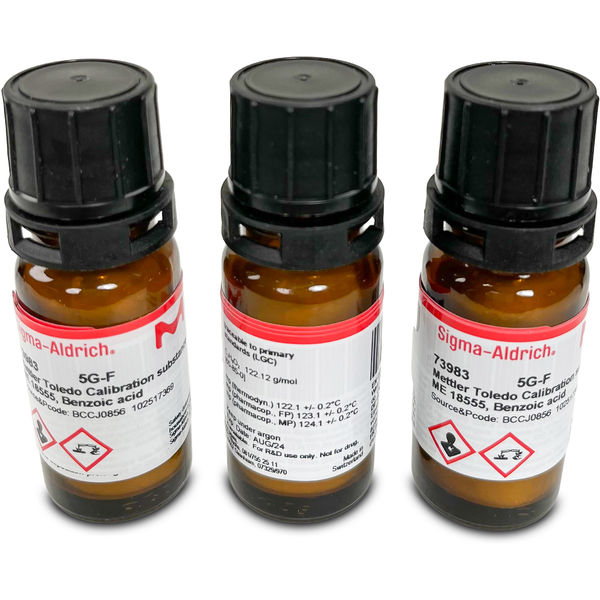

Calibration Substance Benzoic Acid
High-purity reference substances, traceable to LGC standards, enable accurate temperature calibration and adjustment for Melting Point and Dropping Point Excellence instruments in the range of 40 - 360 °C.
Material No.: 18555
Calibration Substance Vanillin
High-purity reference substances, traceable to LGC standards, enable accurate temperature calibration and adjustment for Melting Point and Dropping Point Excellence instruments in the range of 40 - 360 °C.
Material No.: 51143093
Dropping Point Cups, 2.8mm (Set of 5)
Standard compliant dropping point cups made of chromium-plated brass.
Material No.: 18732

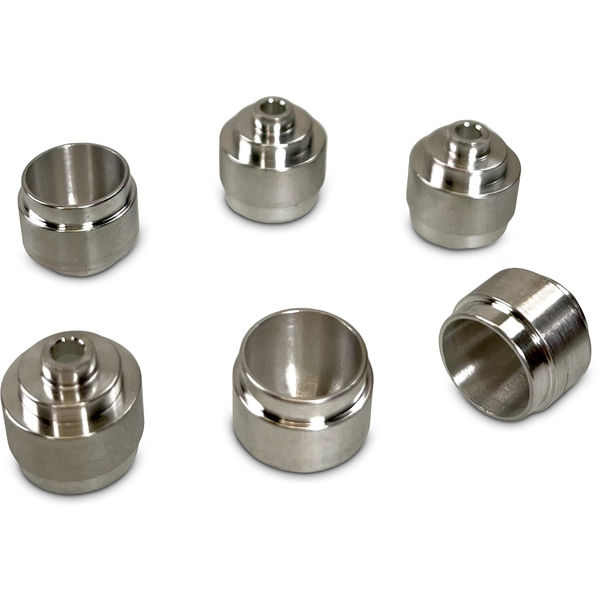

Dropping Point Cups Disp. (50 pcs)
Economic single-use dropping point cups that eliminate the need for tedious cleaning.
Material No.: 30027447
Softening point cups, 6.35 mm
Standard compliant softening point cups made of chromium-plated brass.
Material No.: 18127

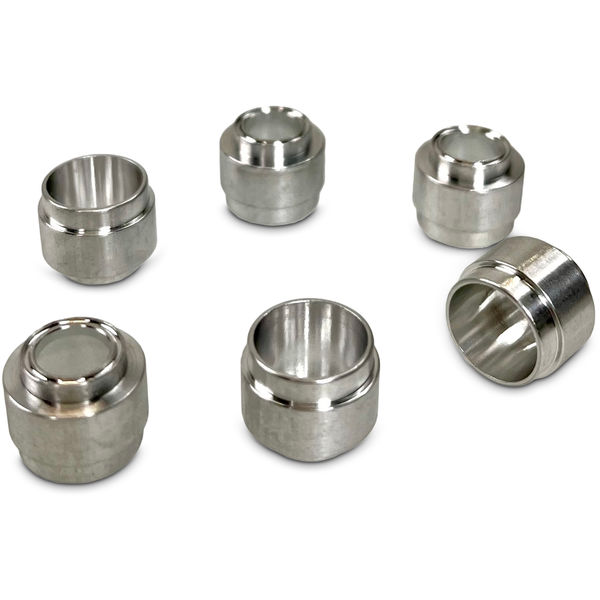

Softening Point Cups Disposable set
Economic single-use softening point cups that eliminate the need for tedious cleaning.
Material No.: 30027448

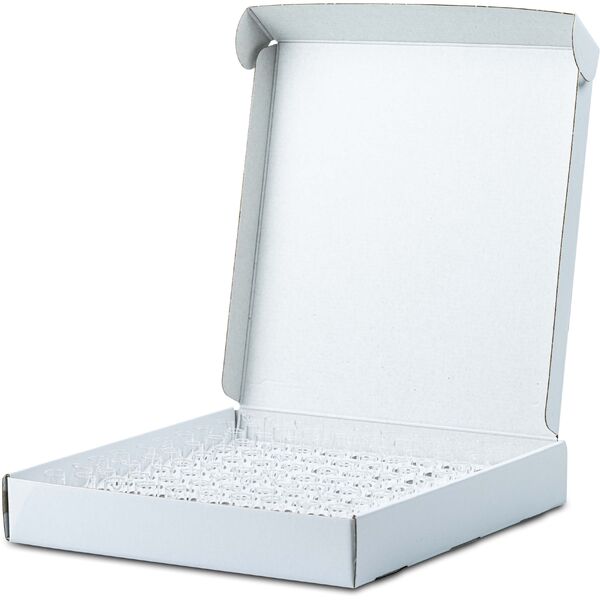

Sample Collection Glass, DP
Economic single-use glass collectors that eliminate the need for tedious cleaning.
Material No.: 51143030

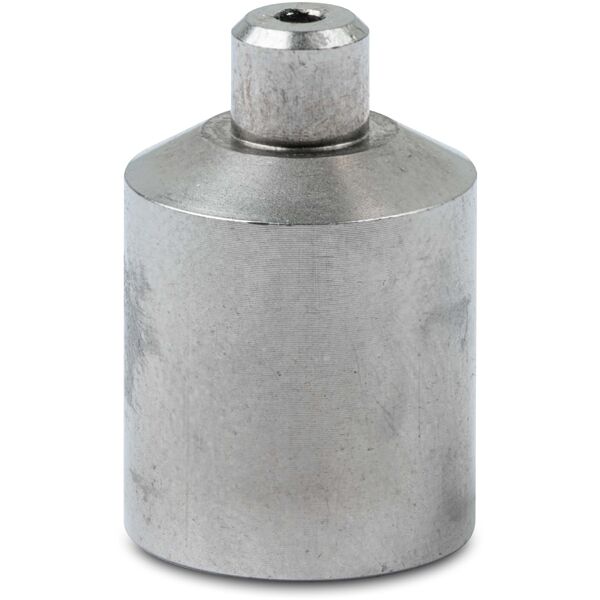

Cup lid, DP (1 pc)
Closed cup lid with vent hole prevents spillage (contamination) in the event of an expanding sample.
Material No.: 51143031

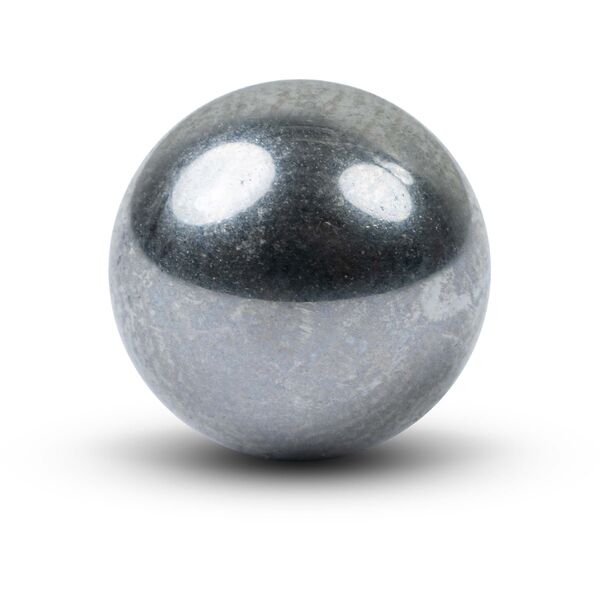

Steel Ball 11/32
The steel ball is placed on top of the sample when determining the softening point using the cup and ball method.
Material No.: 51191672
