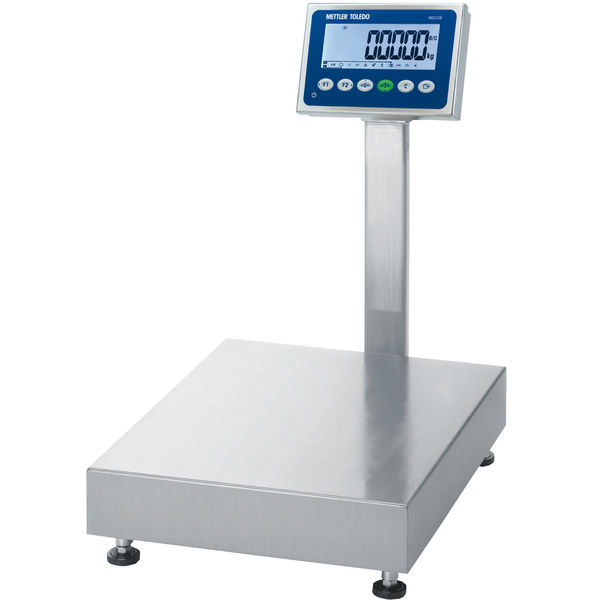

Bench Scale BBA238-8CC300R/S AU
Material No.: 30080113
Specifications
Specifications - Bench Scale BBA238-8CC300R/S AU
| Maximum Capacity | 300 kg |
| Readability | 50 g |
| Material | Stainless Steel |
| Protection Rating | IP67 terminal IP69k Platform |
| Repeatability (sd) | 19.4 g |
| Scale Interface | Analog |
| Platform Size (LxHxW) | 600 mm x 140 mm x 800 mm |
| Display | 7 segment LCD with backlight |
| Readability (Certified) | 100 g |
| Interfaces | RS232 |
| Housing | Stainless Steel |
| Repeatability, typical | 19.4 g |
| Weighing Pan Dimensions (LxHxW) | 600 mm x 90 mm x 800 mm |
| Hazardous Approval | No |
| Data Interface | Discrete I/O Serial USB |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | OIML |
| Environment | Wet & Harsh Wet (≥IP66) |
| Voltage | AC Version Battery Version |
| Interfaces (Optional) | Discrete I/O RS422 RS485 USB |
| Hygienic Design | No |
| Data Management | Printing: Application specific print templates |
| Cable | 2.5 m |
| Platform Type | Bench Scale |
