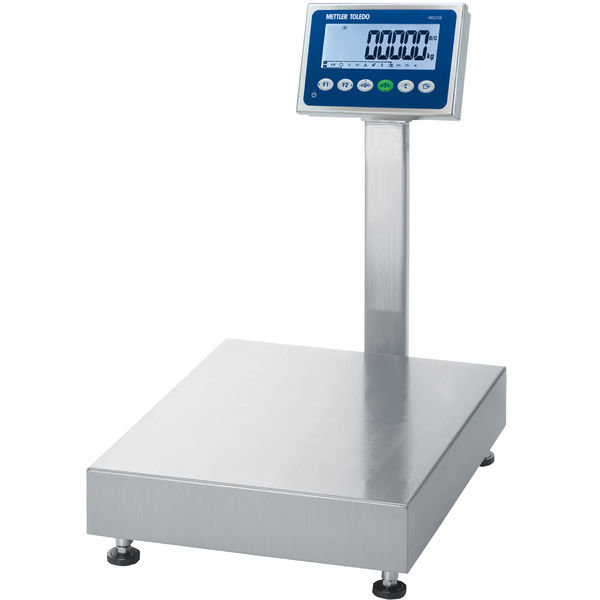

Bench Scale BBA238-8BC300R/S AU
Material No.: 30080111
Highlights
Simple & Intuitive
The IP66 and IP67-rated scale is easy to operate. The straightforward setup of different functions requires minimal operator training.
Easy to Clean
The open and sturdy stainless-steel platform design, built according to hygienic standards, allows fast, thorough and easy cleaning.
Execution
The scale features a hermetically sealed load cell, is AC-powered and comes with a stand.
Specifications
Specifications - Bench Scale BBA238-8BC300R/S AU
| Maximum Capacity | 300 kg |
| Readability | 50 g |
| Material | Stainless Steel |
| Protection Rating | IP67 terminal IP69k Platform |
| Repeatability (sd) | 14.2 g |
| Scale Interface | Analog |
| Platform Size (LxHxW) | 500 mm x 137.5 mm x 650 mm |
| Display | 7 segment LCD with backlight |
| Readability (Certified) | 100 g |
| Interfaces | RS232 |
| Housing | Stainless Steel |
| Repeatability, typical | 14.2 g |
| Weighing Pan Dimensions (LxHxW) | 500 mm x 82 mm x 650 mm |
| Hazardous Approval | No |
| Data Interface | Discrete I/O Serial USB |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | OIML |
| Environment | Wet & Harsh Wet (≥IP66) |
| Voltage | AC Version Battery Version |
| Interfaces (Optional) | Discrete I/O RS422 RS485 USB |
| Hygienic Design | No |
| Data Management | Printing: Application specific print templates |
| Cable | 2.5 m |
| Platform Type | Bench Scale |
