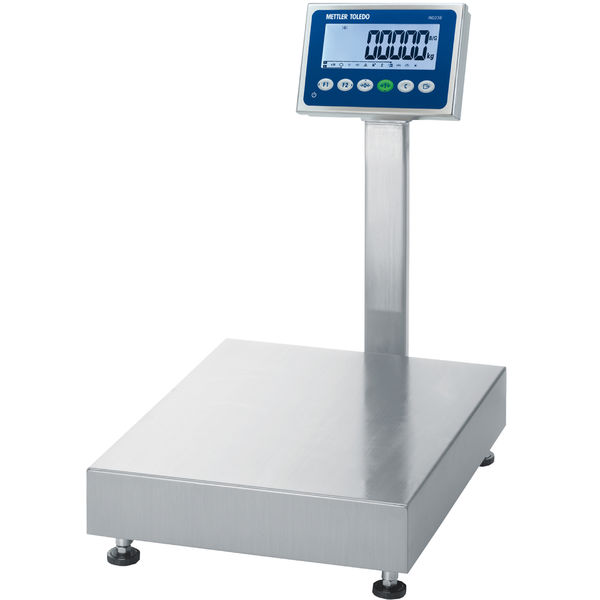

Bench Scale BBA236-4A6R/S AU
Material No.: 30080100
Highlights
Simple & Intuitive
The IP65-rated scale is easy to operate. The straightforward setup of different functions requires minimal operator training.
Easy to Clean
The open and sturdy stainless-steel platform design, built according to hygienic standards, allows fast, thorough and easy cleaning.
Execution
The scale features a Nickel Metal Hydride rechargeable battery for >80 hours stand alone operation. The stand is included with scale.
Specifications
Specifications - Bench Scale BBA236-4A6R/S AU
| Maximum Capacity | 3 kg/6 kg |
| Readability | 0.5 g |
| Readability (Certified) | 1 g 2 g |
| Material | Stainless Steel |
| Protection Rating | IP65 Platform IP67 terminal |
| Repeatability (sd) | 0.2 g |
| Scale Interface | Analog |
| Platform Size (LxHxW) | 240 mm x 86 mm x 300 mm |
| Display | 7 segment LCD with backlight |
| Interfaces | RS232 |
| Housing | Stainless Steel |
| Repeatability, typical | 0.2 g |
| Weighing Pan Dimensions (LxHxW) | 240 mm x 56 mm x 300 mm |
| Hazardous Approval | No |
| Power Supply | Rechargeable NiMH battery |
| Data Interface | Discrete I/O Serial USB |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | OIML |
| Environment | Dusty & Light Wet (IP65) |
| Voltage | AC Version Battery Version |
| Interfaces (Optional) | Discrete I/O RS422 RS485 USB |
| Hygienic Design | No |
| Data Management | Printing: Application specific print templates |
| Cable | 1.8 m |
| Platform Type | Bench Scale |
