High-Performance Weighing

The high resolution weighing cell delivers fast and accurate results. Together with the StatusLight™, you get reliable results, every time.

Efficient Touchscreen Operation

The touchscreen interface, easy-access menus, results notepad, and saved weighing methods make balance operation instinctive and efficient.

Maximum Productivity

Reliable performance, ergonomic weighing processes, and easy data transfer ensure you get the accurate results you want, quickly and efficiently.

Secure Data Handling with LabX

LabX® software automatically captures results, performs all calculations, and saves all data in a secure database, providing a high level of process security and full traceability. Customized reports can be generated at any time.

Consistent Workflows

Save balance filter settings, process settings, and tolerances on the balance as individual methods. Easily accessed, methods offer a quick and convenient way to start tasks; every user follows the same procedures and results are always within tolerance.

At-a-Glance StatusLight™

StatusLight™ uses color to provide instant information on the balance status. Green means it's safe to weigh and results will be valid, yellow is a warning, perhaps that a routine test is due, and red means an issue must be resolved before weighing.

Ergonomic Operation

Placing the display at eye-level on the adjustable ErgoStand™ saves space and eliminates excessive bending of the neck. Optional remote switches simplify workflows, reduce process steps, and leave your hands free to handle samples and equipment.

Safe and Easy Cleaning

The supplied covers protect the terminal and housing and are easily replaced when soiled. The balance body resists harsh chemicals, whilst smooth surfaces and rounded edges make it easy to clean.

Benefit From Our Weighing Know-How

Our free GWP® Recommendation ensures you have the right balance for your weighing process. With years of weighing expertise, we can support you with balance selection, installation, cleaning, routine testing, calibration and maintenance.

Comprehensive Service Offering

Our services include installation and qualification, calibration, maintenance, and routine testing to ensure your balance is fit for purpose and meets industry standards and regulatory requirements. Customize your service package to meet your precise needs.

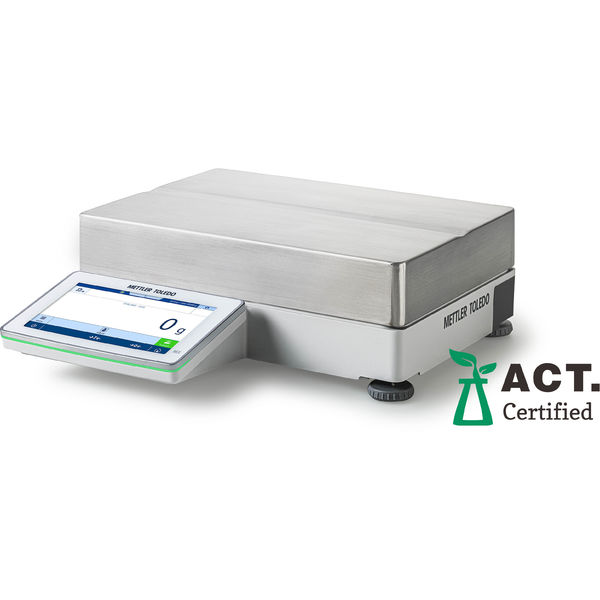

Specifications - Balance XSR16000L

Maximum Capacity	16.1 kg
Readability	1,000 mg
Repeatability, typical	400 mg
Settling Time	1.2 s
Adjustment	Internal (automatic/FACT)
Interfaces	Bluetooth (optional) Ethernet (LAN) RS232 (integrated/optional) USB-A (to device) USB-B (to device)
Display	4.5" color TFT touchscreen
Legal for Trade	No
Weighing Pan Size ( DxW) or Diameter	360.00 mm x 280.00 mm
Minimum Weight (USP, 0.1%, typical)	820 g
Linearity ±	600 mg
Weighing Pan Dimensions (WxD)	360 mm x 280 mm
Dimensions (HxWxD)	122 mm x 360 mm x 412 mm
Terminal size	4.5 inch
Compliance Options	Data Integrity Log history (21 CFR Part 11 Compliant) Log history (Basic Metadata) Password protection
Approved Balance	No
Balance Line	XSR
Balance Type	Precision Balance
Capacity	16,100 g
Large or Heavy Samples	Yes
Balance Size (Depth)	412 mm
Features	Leveling guidance Password protection Supports 21 CFR Part 11 (LabX compatible)
Balance Size (Width)	360 mm
Preferred model	Performance
Documentation Options	Automatic Documentation (21 CFR Part 11 Compliant) Basic Electronic Documentation Printing
Balance Size (Height)	122 mm
Price	$$$
Linearity	600 mg
Family	Excellence
Level	Excellence $$$
21 CFR Part 11 Compliant Weighing	Yes
Automation Options	Automated Workflows

Installation Instructions

User Manual: XSR Precision Balances

Easy reference guide to help you quickly set-up and start using your balance.

Reference Manual: XSR Precision Balances

Full instructions and technical guidance for safe and correct usage of your balance.

MT-SICS Interface Commands for XPR and XSR Balances

To enable you to integrate balances into your systems in a simplified manner and utilize their capabilities, many balance functions can be accessed th...

Draft Shields

Draft shield W64

Protect XPR precision balances or mass comparators with large platforms against environmental influences to improve repeatability and stabilization times. Requires a terminal extension cable. Dimensions (W×D×H inside): 550×470×580 mm.

Material No.: 11134470

Excellence Refractometer Accessories and Consumables

Lab equip acc data writer P-58RUE

P-58RUE Thermal Printer offers statistics, formulation, totaling applications and label printing with barcode. It can be connected via RS232, USB and ethernet interfaces.

Material No.: 30094674

Lab equip acc data writer P-56RUE

P-56RUE Thermal printer supports printing on thermal paper and continuous thermal labels, and it can be connected via RS232, USB and ethernet interfaces.

Material No.: 30094673

Interfaces, Cables, and Power Supplies

Bluetooth RS232 Adapter (single)

Single Bluetooth RS232 serial adapter for wireless connection between an instrument and a peripheral.

Material No.: 30086494

Bluetooth USB Adapter

Bluetooth USB adaptor for XPR/XSR balances for wireless connection to a Bluetooth-enabled device; ideal for P5x printers

Material No.: 30416089

Cable RS232 (m) – USB-A (m)

RS232 - USB converter cable to connect a balance (RS232) to a USB port

Material No.: 64088427

Terminal Extension Cable (4.5m)

A 4.5 m terminal cable designed for easy, flexible installation to support your specific workspace setup.

Material No.: 30300920

Printers and Printer Accessories for Laboratory

Lab equip acc data writer P-52RUE

P-52RUE dot matrix printer supports printing on paper and continuous label and can be connected via RS232, USB and Ethernet interfaces.

Material No.: 30237290

Single Test Weights

Weight 500g F2 PL C E

Single F2 OIML class knob weight with adjusting cavity in a plastic box including a calibration certificate

Material No.: 30406432

Weight 10kg F2 PL C E

Single F2 OIML class knob weight with adjusting cavity in a plastic box including a calibration certificate

Material No.: 30406436

Weighing Peripherals

Foot Pedal

Perform balance operations such as opening doors, taring, zeroing, or adding a result by pressing the foot pedal. Connectable via USB-A.

Material No.: 30312558

ErgoStand L-Platform

Place the balance terminal 30 cm above the weighing pan for improved ergonomics and convenient result reading. Designed for use with XPR large platform precision balances, this setup enhances user comfort and efficiency.

Material No.: 30125333

Wall Mounting Kit (1.8m Cable)

Design your workspace to optimize ergonomics and increase convenience with this wall mounting kit. The bracket and 1.8 m long connection cable enable you to mount your XPR balance terminal on a wall.

Material No.: 30138798

ErgoSens Motion Sensor

Perform balance operations such as opening doors, taring, zeroing, or adding a result by waving your hand over the ErgoSens motion sensor. Connectable via USB-A.

Material No.: 30300915

Adapterkit for Ergo Stand XSR Terminal

The XSR precision stand adapter kit allows mounting of an XSR terminal to an Ergostand stand or to wall mounting terminal bracket in just a few seconds.

Material No.: 30300956

Barcode Scanner

The corded Gryphon GD4220 USB-A barcode reader scans 1D and linear codes quickly. It simplifies your process and improves efficiency with reliable operation.

Material No.: 30417466
