Strain Gauge Technology

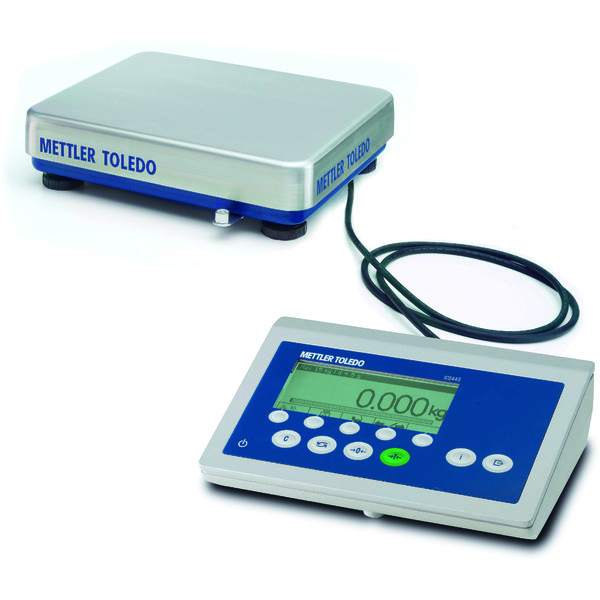

The ICS445 basic counting solution offers configurable soft keys for fast access to key functions, such as sampling for counting.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Withstands Harsh, Dry and Dust-Contaminated Environments
The IP65-approved PBD655 Platform digital platform series is built for challenging environments.
Material No.: 22023239
Maximum Capacity | 60 kg |
Readability (Certified) | 10 g |
Material | Platform: Carbon Steel Terminal: Aluminium diecast |
Repeatability (sd) | 0.6 g |
Protection Rating | IP65 |
Scale Interface | SICSpro |
Platform Size (LxHxW) | 23.6 in x 4.7 in x 31.5 in (600 mm x 120 mm x 800 mm) |
Display | Graphic LCD with backlight |
Interfaces | RS232 |
Housing | Platform: Carbon Steel Terminal: Aluminium diecast |
Repeatability, typical | 0.6 g |
Application Software | Dynamic Weighing Counting Simple weighing |
Hazardous Approval | No |
Data Interface | Serial USB Ethernet |
Applications | Simple Weighing Dynamic weighing Counting |
Environment | Dusty & Light Wet (IP65) |
Legal for Trade | OIML |
Hazardous Area | Non-hazardous area |
Interfaces (Optional) | USB Ethernet RS422 RS485 Discrete I/O |
Voltage | Battery Version AC Version |
Hygienic Design | No |
Platform Type | Bench Scale |
