Strain Gauge Technology

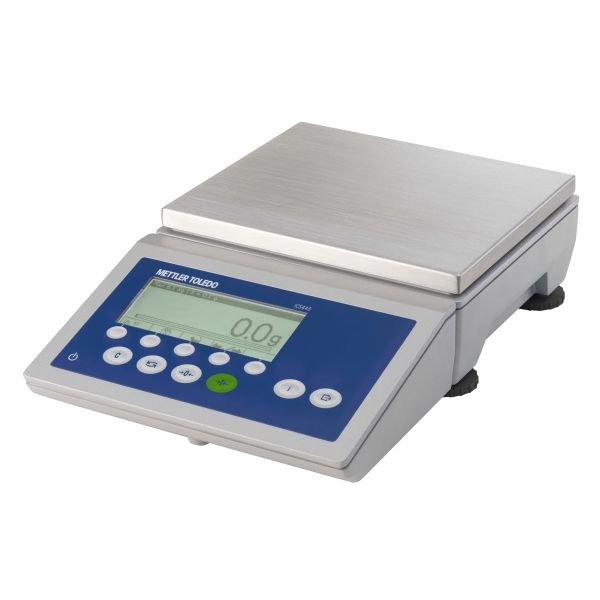

The ICS445 basic counting solution offers configurable soft keys for fast access to key functions, such as sampling for counting.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Material No.: 22023043
Maximum Capacity | 12 lb (6 kg) |
Readability | 0.001 lb (0.1 g) |
Readability (Certified) | 0.002 lb |
Repeatability (sd) | 0.00009 lb (0.04 g) |
Platform Size (LxHxW) | 7.9 in x 3.7 in x 9.5 in (200 mm x 95 mm x 240 mm) |
Material | Aluminum die casting |
Protection Rating | IP54 |
Repeatability | 0.0002 lb |
Hazardous Approval | No |
Housing | Aluminum Die Casting |
Interfaces | RS232 |
Display | Graphic LCD with backlight |
Repeatability, typical | 0.04 g |
Repeatability, (typical) | 0.00009 lb |
Application Software | Dynamic Weighing Counting Simple weighing |
Data Interface | Serial USB Ethernet |
Environment | Dry (<IP65) |
Legal for Trade | NTEP |
Hazardous Area | Non-hazardous area |
Applications | Simple Weighing Dynamic weighing Counting |
Voltage | Battery Version AC Version |
Scale Interface | SICSpro |
Interfaces (Optional) | USB Ethernet RS422 RS485 Discrete I/O |
Hygienic Design | No |
Platform Type | Counting Scales |
